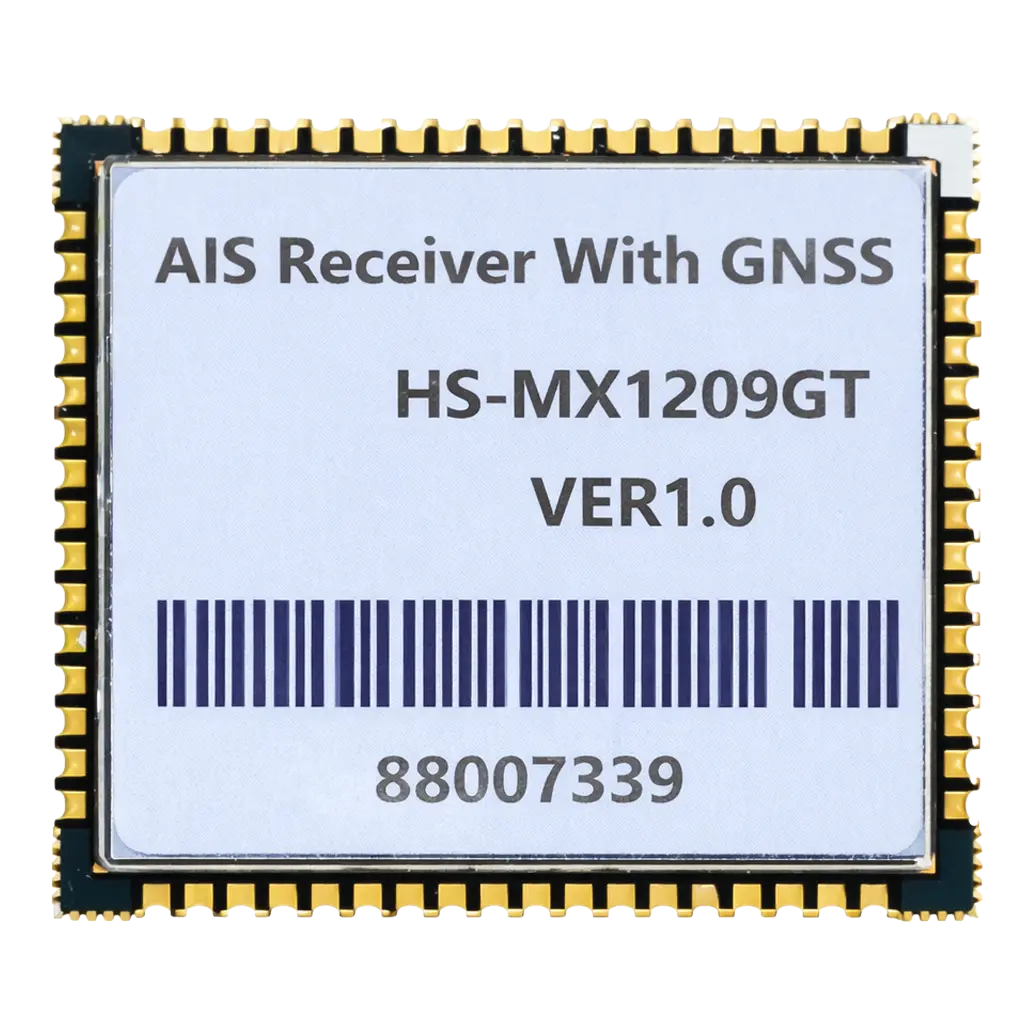

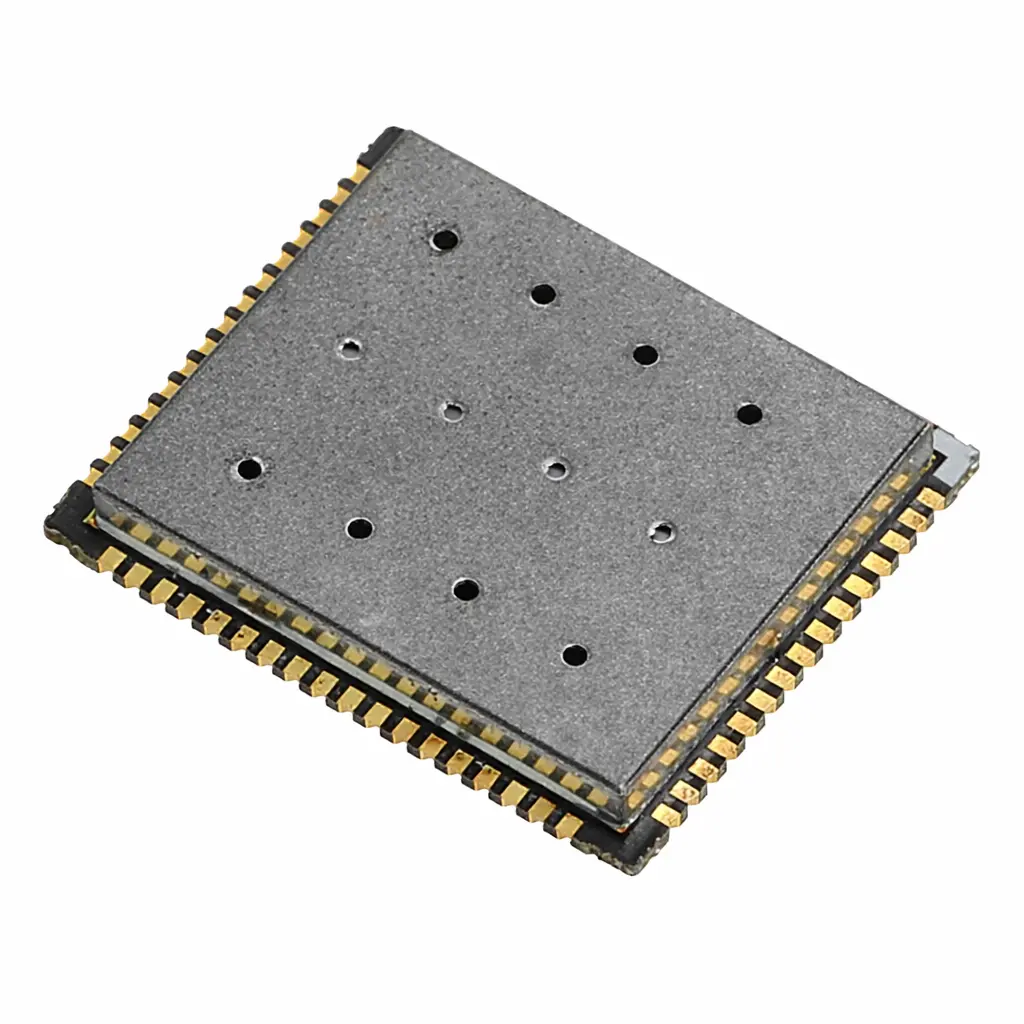

The HS‑MX1209GT is an ultra‑compact, low‑power AIS (Automatic Identification System) receiver module designed for next‑generation maritime communication, vessel tracking, and unmanned system integration. Based on a high‑performance SDR architecture, it delivers excellent AIS decoding capability with receiver sensitivity down to -112dBm @ 20% PER.
The module integrates dual‑channel AIS receivers and a built‑in 50‑channel GNSS receiver (GPS/Galileo/Beidou optional), enabling precise positioning and reliable AIS message decoding from Class A, Class B, AtoN, airborne AIS, AIS SART, AIS MOB, and EPIRB‑AIS devices.
With its extremely small footprint (44 × 38 × 5 mm) and low power consumption, the HS‑MX1209GT is ideal for compact AIS terminals, beacon lights, AtoN, UAVs, USVs, offshore wind farm systems, and smart maritime IoT applications.
The HS‑MX1209GT offers industry‑leading compactness, excellent sensitivity, and integrated GNSS, making it ideal for space‑constrained AIS devices, unmanned platforms, and next‑generation maritime IoT systems.
🟦 Why Choose HaisiTek
Advanced AIS communication technology
High‑reliability RF & GNSS integration
Full compliance with international maritime standards
Ultra‑compact, low‑power design
Strong engineering support & customization capability
No, the HS-MX1203GT module itself does not have a built-in GPS. It requires an external active GPS/BeiDou antenna connected via its MCX-female connector to obtain its own position, which is essential for transmitting AIS messages.
What is the default configuration, and how do I program it for my vessel?
The module ships with generic factory settings. You must configure it with your vessel's specific MMSI number, name, and call sign using our provided AIS CONFIGURATION PC software and a TTL-to-USB adapter cable. Once configured, these details are stored in the module.
Can I temporarily turn off the AIS transmission (Silent Mode)?
Yes. The module features a SILENT pin. By pulling this pin low (to GND), you can disable AIS transmission for privacy or in security-sensitive areas while continuing to receive AIS data from other vessels.
What kind of antenna should I use with this module?
You need two separate VHF antennas:
A dedicated GPS/GLONASS/BeiDou active antenna for the GPS port. Using high-quality, properly installed antennas is critical for optimal performance.
A dedicated AIS VHF antenna for the VHF port.
I'm designing a new device. Is technical documentation available?
Yes. We provide comprehensive documentation for integrators, including:
Schematic for Typical Application Circuits Please contact our technical support team to access these resources.
Datasheet & Pinout Definitions
NMEA Protocol Guide
Configuration Command Manual
What is the Minimum Order Quantity (MOQ) for this module?
The MOQ for standard models like the HS-MX1203GT is typically 10 units. We also support customizations for larger volume orders. Contact our sales team for an exact quote.
Do you offer sample orders for testing and evaluation?
Yes, we encourage and support product evaluation. Sample orders are available. Please get in touch with us to arrange a sample and discuss your testing requirements.
