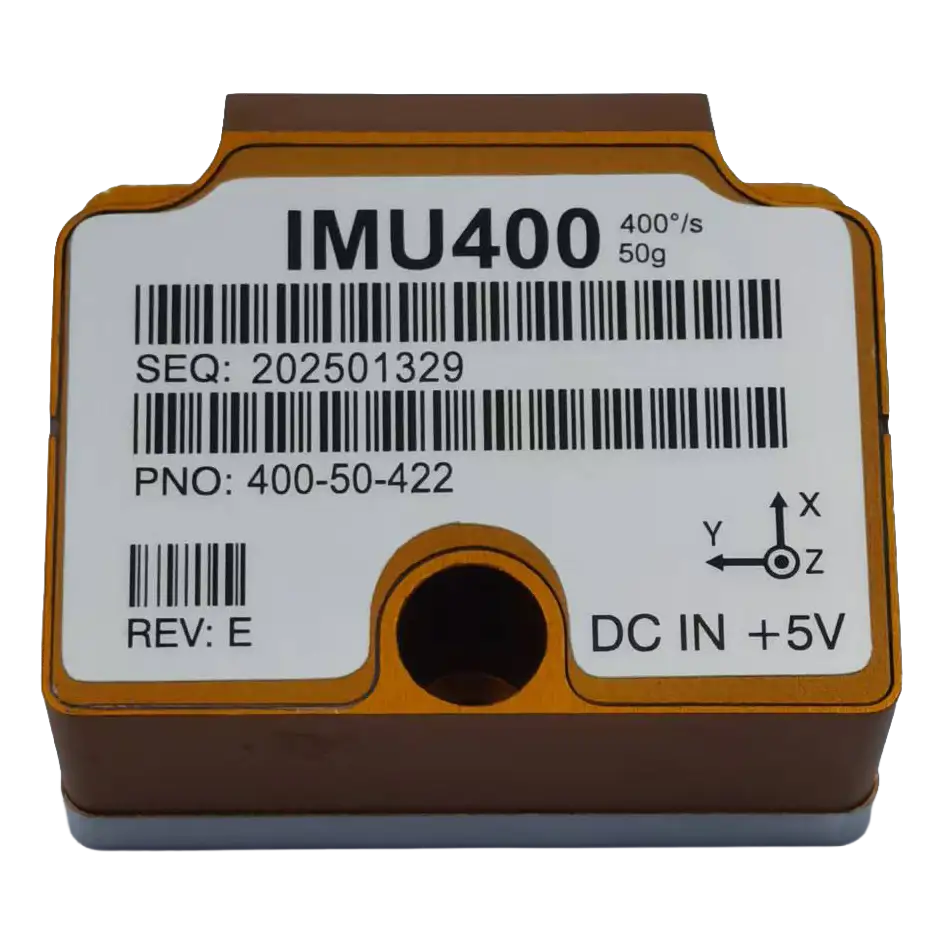

The IMU400 is a high‑precision 6‑axis MEMS inertial measurement unit (IMU) integrating three gyroscopes and three accelerometers for real‑time measurement of angular velocity and acceleration. It outputs data through a single RS422 asynchronous serial port, making it suitable for industrial systems requiring stable, high‑frequency inertial sensing.
With full‑temperature compensation, low drift, and robust mechanical design, the IMU400 delivers reliable performance in harsh environments such as robotics, autonomous systems, platform stabilization, and industrial motion control.
Installation error should be <0.05° relative to reference plane
🟦 Electrical Interface (J30J‑15TJL)
Pin
Function
1
TXD− (RS422 transmit low)
2
RXD− (RS422 receive low)
3
TST (Do not connect)
4
+3.3V
5
NRST (Reset)
6
Digital GND
8
VSUP +5V
9
TXD+ (RS422 transmit high)
10
RXD+ (RS422 receive high)
11
IO (External sync trigger)
15
Power GND
🟦 Output Data Format (Default)
Header: 0xAA 0x55
Frame length: 0x24
Gyro XYZ (float ×3)
Accel XYZ (float ×3)
Gyro temperature (float)
Accelerometer temperature (float)
Checksum (1 byte)
🟦 Applications
Robotics & automation
Platform stabilization
Motion control systems
Navigation & guidance
Industrial measurement
UAV / UGV / AGV inertial sensing
🟦 Why Use IMU400
The IMU400 offers industrial‑grade inertial sensing, combining high precision, low drift, and robust RS422 communication. Its configurable output frequency and baud rate make it adaptable to a wide range of real‑time control and motion tracking applications.
🟦 Why Choose HaisiTek
Advanced MEMS inertial sensor technology
Full‑temperature calibration & compensation
Industrial‑grade reliability and stability
High‑speed RS422 output
Strong engineering support & customization capability
