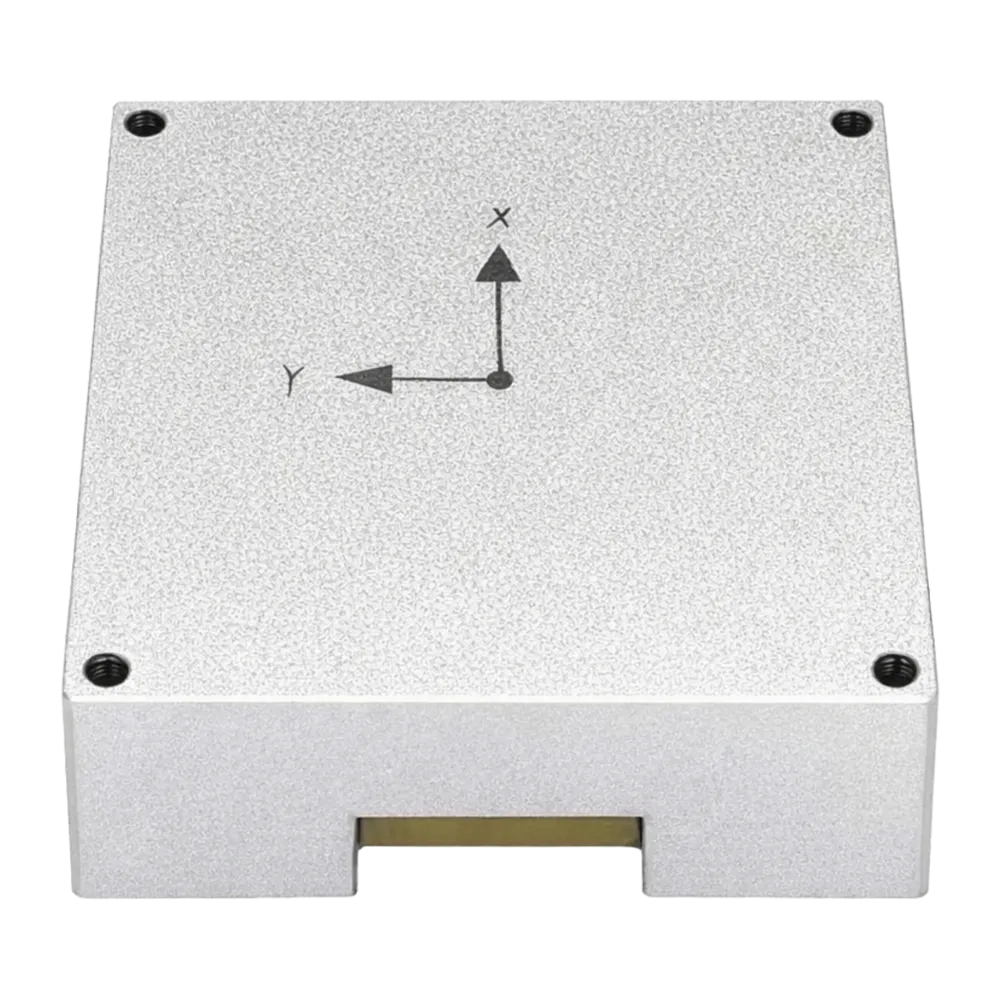

IMU6488 Series | High‑Precision Industrial‑Grade MEMS Inertial Measurement Unit (IMU) with 3‑Axis Gyro & Accelerometer

PRODUCT PARAMETERS

  • High‑precision industrial‑grade MEMS IMU
  • Built‑in 3‑axis gyroscope + 3‑axis accelerometer
  • Optional magnetometer & barometer
  • SPI interface, up to 2000Hz output
  • Wide temperature range ‑40°C to +80°C
  • Ideal for robotics, automation, platform stabilization & industrial control
Description
FAQs
Request A Quote

Description

🟦 Product Overview

The IMU6488 Series is a high‑precision industrial‑grade Inertial Measurement Unit (IMU) integrating 3‑axis gyroscopes and 3‑axis accelerometers, with optional 3‑axis magnetometer and barometer depending on the model (B/C/D/E).

All sensor outputs undergo temperature compensation, installation misalignment correction, and non‑linear compensation, ensuring stable and accurate measurement under harsh industrial environments.

With a compact size of 47 × 44 × 14 mm, strong anti‑overload capability, and high reliability, the IMU6488 series is ideal for industrial automation, robotics, platform stabilization, instrumentation, and dynamic motion control.

🟦 Key Features

  • High‑precision MEMS inertial sensors
  • Built‑in 3‑axis gyroscope + 3‑axis accelerometer
  • Optional magnetometer & barometer (B/C/D models)
  • Gyro range: ±450°/s
  • Accelerometer range: ±18g
  • High output frequency: 2000Hz (IMU6488E: 1000Hz)
  • SPI communication interface
  • Wide operating temperature: ‑40°C to +80°C
  • Strong anti‑vibration & anti‑shock capability
  • Compact size: 47 × 44 × 14 mm, weight <40g

🟦 Model Comparison

ModelGyroscopeAccelerometerMagnetometerBarometerOutput Rate
IMU6488BYesYesOptionalOptional2000Hz
IMU6488CYesYesOptionalOptional2000Hz
IMU6488DYesYesOptionalOptional2000Hz
IMU6488EYesYesNoNo1000Hz

🟦 Technical Specifications

Gyroscope

  • Range: ±450°/s
  • Bias Instability: 3°/h (B), 1°/h (C), 0.3°/h (E)
  • Random Walk: 0.08°/√hr (B/C), 0.03°/√hr (E)
  • Bias Stability: 20°/h (B), 6°/h (C), 3°/h (E)
  • Bandwidth: 200–268Hz

Accelerometer

  • Range: ±18g
  • Bias Instability: 80µg (B), 50µg (C), 20µg (E)
  • Random Walk: 0.08–0.02 m/s/√hr
  • Bandwidth: 268Hz

Magnetometer (Optional)

  • Range: ±8 gauss
  • Resolution: 0.2mG
  • Noise Density: 50µG

Barometer (Optional)

  • Range: 300–1100mbar
  • Tolerance: 4.5mbar

System

  • Dimensions: 47 × 44 × 14 mm
  • Weight: <40g
  • Operating Voltage: 3.3V
  • Power Consumption: <0.8W
  • Interface: SPI
  • Output Frequency: 2000Hz / 1000Hz
  • Operating Temperature: ‑40°C ~ +80°C
  • Storage Temperature: ‑55°C ~ +105°C
  • Shock: 1500g / 0.5ms
  • Random Vibration: 6.06g (20–2000Hz)

🟦 Applications

  • Industrial anti‑vibration & attitude control
  • Robotics & automated machinery
  • Platform stabilization systems
  • Precision instrumentation
  • Motion tracking & dynamic measurement
  • Industrial navigation & control systems

🟦 Why Use This Product

The IMU6488 series delivers industrial‑grade precision, high reliability, and high‑frequency output, making it ideal for demanding applications requiring accurate motion sensing and robust environmental adaptability.

🟦 Why Choose HaisiTek

  • Advanced MEMS inertial sensor technology
  • Industrial‑grade calibration & compensation algorithms
  • High reliability under harsh conditions
  • Strong engineering support & customization options
IMU6488_User_Manual_ENDownload
