MG100 | High‑Performance Closed‑Loop MEMS Gyroscope (±100°/s to ±1000°/s Range)
PRODUCT PARAMETERS
- Fully digital closed‑loop MEMS gyroscope
- Measurement range: ±100°/s to ±1000°/s
- Ultra‑low drift: ≤2.5°/h (constant temperature)
- Full‑temperature drift: ≤10°/h
- Angular random walk: ≤0.12°/√h
- SPI digital output (24‑bit angular rate, 14‑bit temperature)
- Built‑in low‑pass filter (80Hz–900Hz selectable)
- Supports external synchronization
- Shock resistance: 4000g, 0.5 ms
- Operating temperature: ‑45°C to +85°C
- Package: CLCC48, 11 × 11 mm
Description
FAQs
Request A Quote
Description
🟦 Product Overview

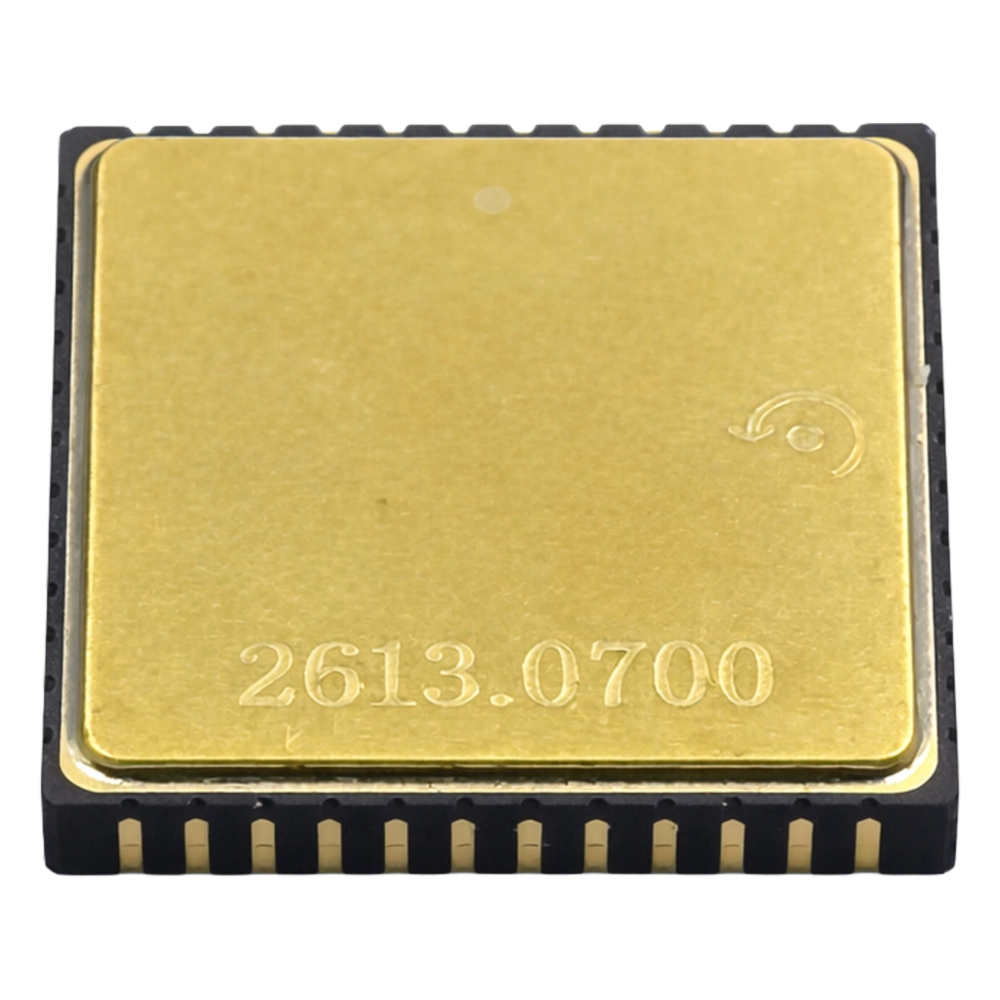

The MG100 is a high‑performance, fully digital closed‑loop MEMS gyroscope designed for applications requiring exceptional stability, low noise, and long‑term reliability. Built with a low‑noise, low‑drift ASIC and a precision MEMS gyro structure, the MG100 delivers outstanding static performance, dynamic response, and temperature stability.
It supports SPI digital output, providing 24‑bit angular velocity and 14‑bit temperature data, with both synchronous and random acquisition modes. A built‑in configurable low‑pass filter, on‑chip temperature compensation, and sensor status monitoring further enhance performance.
With its compact CLCC48 (11 × 11 mm) package and simple peripheral circuit, the MG100 is ideal for high‑performance inertial measurement, navigation, and stabilization control.
🟦 Key Features
- Fully digital closed‑loop MEMS gyroscope
- Measurement range: ±100°/s to ±1000°/s
- Ultra‑low drift: ≤2.5°/h (constant temperature)
- Full‑temperature drift: ≤10°/h
- Angular random walk: ≤0.12°/√h
- SPI digital output (24‑bit angular rate, 14‑bit temperature)
- Built‑in low‑pass filter (80Hz–900Hz selectable)
- Supports external synchronization
- Shock resistance: 4000g, 0.5 ms
- Operating temperature: ‑45°C to +85°C
- Package: CLCC48, 11 × 11 mm
🟦 Performance Specifications
| Parameter | MG100‑100 | MG100‑500 | MG100‑1000 | Unit |
|---|---|---|---|---|
| Range | ±100 | ±500 | ±1000 | °/s |
| Zero Offset @25°C | 15 | 45 | 100 | °/h |
| White Noise | ≤0.001 | ≤0.002 | ≤0.003 | °/s/√Hz |
| Zero‑Drift Stability (10s avg) | ≤1 | ≤2.5 | ≤5 | °/h |
| Full‑Temp Zero Drift | ≤2 | ≤10 | ≤10 | °/h |
| Angular Random Walk | ≤0.06 | ≤0.12 | ≤0.18 | °/√h |
| Scale Factor | 50,000 | 10,000 | 5,000 | LSB/(°/s) |
| Nonlinearity | ≤200 | ≤200 | ≤200 | ppm |
| Bandwidth | ≥50 | ≥200 | ≥200 | Hz |
| G‑Sensitivity | 3 | 3 | 3 | °/h/g |
| Shock Resistance | 4000g | 4000g | 4000g | g |
| Supply Voltage | 4.75–5.25 | 4.75–5.25 | 4.75–5.25 | V |
| Operating Current | ≤22 | ≤22 | ≤22 | mA |
| Operating Temp | ‑45 ~ +85 | ‑45 ~ +85 | ‑45 ~ +85 | °C |
🟦 Applications
- High‑precision inertial measurement
- Platform stabilization & control
- Navigation aids
- Robotics & automation
- Motion tracking systems
- Industrial and aerospace instrumentation
🟦 Why Use This Product
The MG100 offers high‑end gyroscope performance in a compact MEMS package, delivering ultra‑low drift, low noise, and robust environmental tolerance—ideal for demanding inertial navigation and stabilization applications.
🟦 Why Choose HaisiTek
- Advanced closed‑loop MEMS gyro technology
- Industrial‑grade reliability and shock resistance
- High‑precision digital output with SPI
- Strong engineering support & customization capability
Ordering Information
Clear breakdown of the available models for purchasing variations.
🟦 Ordering Information / Available Models
The MG100 series offers multiple range options to suit specific project needs.
| Part Number | Measurement Range | Grade |
| MG100-100 | ±100 °/s | Industrial |
| MG100-500 | ±500 °/s | Industrial |
| MG100-1000 | ±1000 °/s | Industrial |
