HS‑MX2458GT | 2.4GHz & 5.8GHz 30dB Dual‑Band Low Noise Amplifier
PRODUCT PARAMETERS
- Dual‑band operation: 2.4GHz & 5.8GHz
- High gain: 30dB typical
- Ultra‑low noise figure for sensitive RF front‑ends
- Wide operating voltage: 5V–30V
- CNC‑milled aerospace‑grade aluminum housing
- Conductive oxidation for enhanced EMI shielding
- SMA‑F RF connectors
- Integrated 3000pF power filtering capacitor
- Stable performance across temperature variations
- Ideal for laboratory, industrial, and field applications
Description
FAQs
Request A Quote
Description

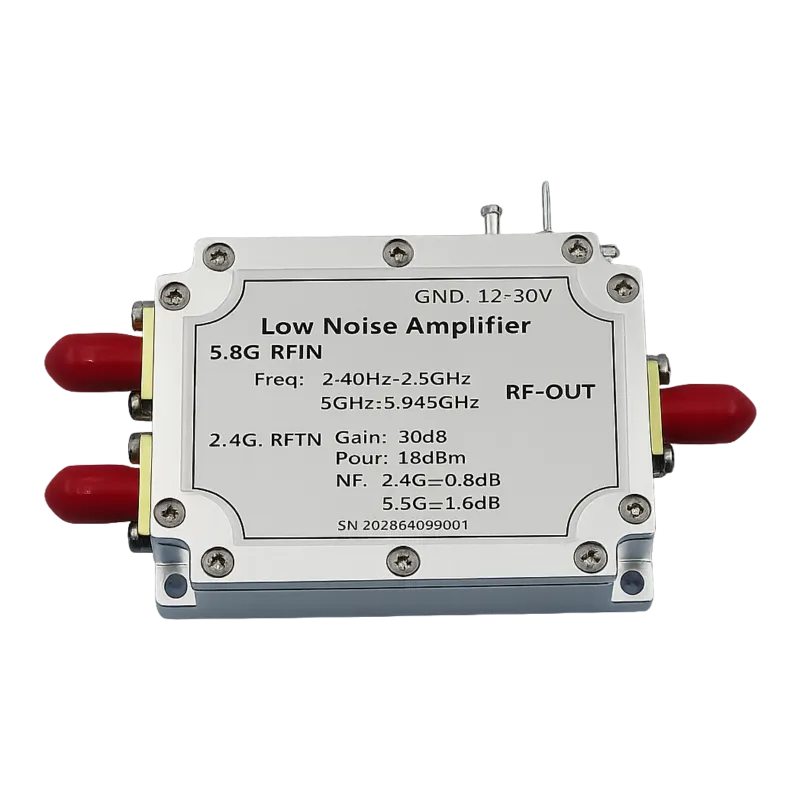

🟦 Product Overview
The HS‑MX2458GT is a high‑performance dual‑band low noise amplifier engineered for RF receiver front‑ends operating at 2.4GHz and 5.8GHz. It delivers high gain, excellent frequency selectivity, and ultra‑low noise performance, making it ideal for wireless communication systems, scientific research, industrial RF modules, and radio monitoring applications.
The amplifier is built using CNC‑milled aerospace‑grade aluminum alloy, ensuring high structural precision, lightweight construction, and superior electromagnetic shielding. Its surface undergoes natural conductive oxidation, providing excellent conductivity and isolation from external interference. The power input integrates a 3000pF RF shunt capacitor, effectively suppressing power supply spikes and noise.
With its wide bandwidth, robust mechanical design, and stable performance across temperature variations, the HS‑MX2458GT is widely used in full‑band spectrum reconnaissance, EMC receiver evaluation, and RF front‑end enhancement.
🟦 Key Features
- Dual‑band operation: 2.4GHz & 5.8GHz
- High gain: 30dB typical
- Ultra‑low noise figure for sensitive RF front‑ends
- Wide operating voltage: 5V–30V
- SMA‑F RF connectors
- CNC‑milled aluminum alloy housing
- Conductive oxidation for enhanced EMI shielding
- Integrated 3000pF power filtering capacitor
- Stable performance across temperature variations
🟦 Electrical Specifications
| Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Frequency Range | 2400 / 5000 | — | 2500 / 5945 | MHz |
| Gain | 29 | 30 | 31 | dB |
| Gain Flatness (2.4GHz) | — | ±0.5 | — | dB |
| Gain Flatness (5.5GHz) | — | ±1 | — | dB |
| Noise Figure (2.4GHz) | 0.6 | 0.8 | 0.9 | dB |
| Noise Figure (5.5GHz) | 0.9 | 1.2 | 1.4 | dB |
| Output Power @2.4GHz | — | 15 | — | dBm |
| Output Power @5.8GHz | — | 17 | — | dBm |
| Input VSWR | — | — | 2:1 | |
| Output VSWR | — | — | 2:1 | |
| Impedance | — | 50 | — | Ohm |
| Input Power (CW) | — | -15 | — | dBm |
| Power Supply Voltage | 12 | — | 30 | V |
| Operating Current @28V | 0.3 | 0.35 | 0.4 | A |
| Operating Temperature | -40 | +25 | +65 | ℃ |
| Storage Temperature | -40 | +25 | +85 | ℃ |
| Weight | — | 63 | — | g |
🟦 Housing & Interface
- Housing Material: Aerospace‑grade aluminum alloy
- Surface Treatment: Natural conductive oxidation
- Connector Type: SMA‑F
- Weight: 63g
- High‑precision CNC‑milled enclosure
- Excellent electromagnetic shielding performance
🟦 Applications
- RF receiver front‑ends
- Wireless communication systems (2.4GHz / 5.8GHz)
- Spectrum monitoring & radio management
- EMC receiver testing
- Scientific research instrumentation
- Industrial RF communication modules
- Full‑band spectrum reconnaissance
🟦 Why Use This Product
The HS‑MX2458GT combines high gain, ultra‑low noise, and excellent EMI shielding, making it ideal for demanding RF environments. Its wide voltage range and robust mechanical design ensure reliable operation in laboratory, industrial, and field applications.
🟦 Why Choose HaisiTek
- Professional RF engineering and precision manufacturing
- High‑reliability components and aerospace‑grade materials
- Strict quality control and performance testing
- Wide product portfolio for RF front‑end enhancement
- Fast technical support and customization capability
🟦 HS‑MX2458GT Datasheet
