HS-MX6208GT: Multi-Functional AIS Transceiver Black Box
PRODUCT PARAMETERS
Description
AIS Transceiver
The HS-MX6208GT is a fully-featured AIS black box terminal that combines a high-performance transceiver with a built-in GNSS receiver. Delivering both 2W (CSTDMA) and 5W (SOTDMA) power modes, it’s the core solution for vessel tracking, smart AtoN, and maritime safety applications.
Features and Specifications
- Built-in a high-precision positioning system, expandable to support Beidou-3 short message data transmission.
- Utilizes a high-performance dedicated AIS signal processing SoC chip.
- Integrated full-protocol stack Class B and B+ AIS transponder.
- Supports 2W CSTDMA and 5W SOTDMA low and high-level output power.
- Excellent sensitivity down to -119dBm for receiving long-range vessels and other AIS information.
- Compliant with the technical requirements of AIS Type I/II/III buoy products.
- Supports automatic reception and rapid processing of transmissions from other vessels, VTS shore stations, airborne, and satellite AIS.
- Receives and parses position, heading, speed, and other data, encapsulating it in standard AIS message formats.
- Compliant with IEC 60945, IEC 62287-1/2, IEC 61162-1/2, IEC 61108-1/2, IEC 62320-2, and ITU-R M1371-5 standards.
- Ultra-compact dimensions (144mm x 64mm x 50mm), ideal for miniaturized, multi-functional AIS applications.

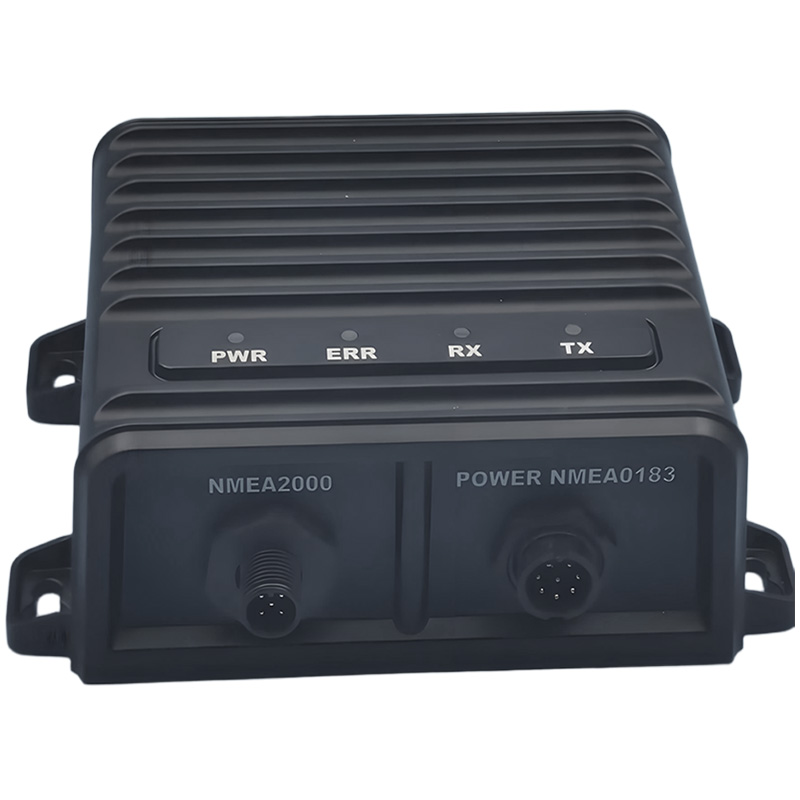

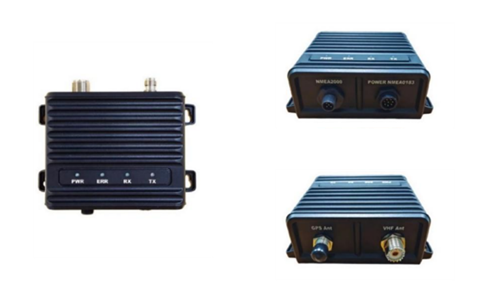

Figure 1 Product Photo

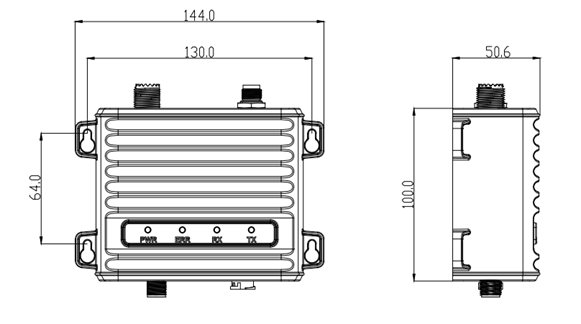

Dimensions (unit: mm)
Figure 2 144mm x 64mm x 50mm
Interfaces and Definitions

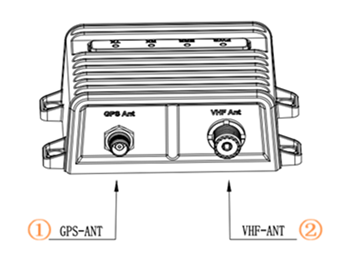

RF interfaces
① GPS-ANT, external GPS antenna
② VHF-ANT, external AIS antenna
2. Data Communication and Power Interfaces
③ NMEA 2000, connect to external NMEA2000 data bus.
④ NMEA 0183/Power/SILENT, 8-pin aviation connector, connect to external 3.3V TTL serial communication (compliant with NMEA 0183 data format), 12V DC power supply, enable and disable silent mode.

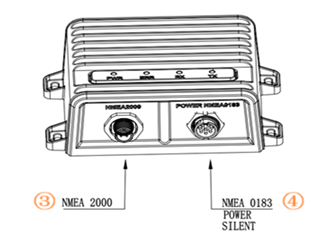

Figure 4 External Communication and Power Interfaces
Interface Definitions
| Connector ① | |||
| Serial Number | Definition | Connection Instructions | Remarks |
| ① | GNSS Ant | Connect to GPS/BeiDou Antenna | TNC(Female) |
| Connector ② | |||
| Serial Number | Definition | Connection Instructions | Remarks |
| ② | VHF Ant | Connect to AIS Antenna | SL16(Female) |
| Connector ③ | |||
| Serial Number | Definition | Connection Instructions | Remarks |
| ③ | Cable Shield | Bare Drain, Shield | |
| NET-S | Red, Power | ||
| NET-C | Black, GND | ||
| NET-H | White, High Signal | ||
| NET-L | Bule, Low Signal | ||
| Connector ④ | |||
| Serial Number | Definition | Connection Instructions | Remarks |
| ④ | VCC | Red | |
| GND | Black | ||
| TX- | Yellow | ||
| TX+ | Green | ||
| RX- | White | ||
| RX+ | Brown | ||
| GND | Blue | ||
| SILENT | Gray | ||
Peripheral Connection

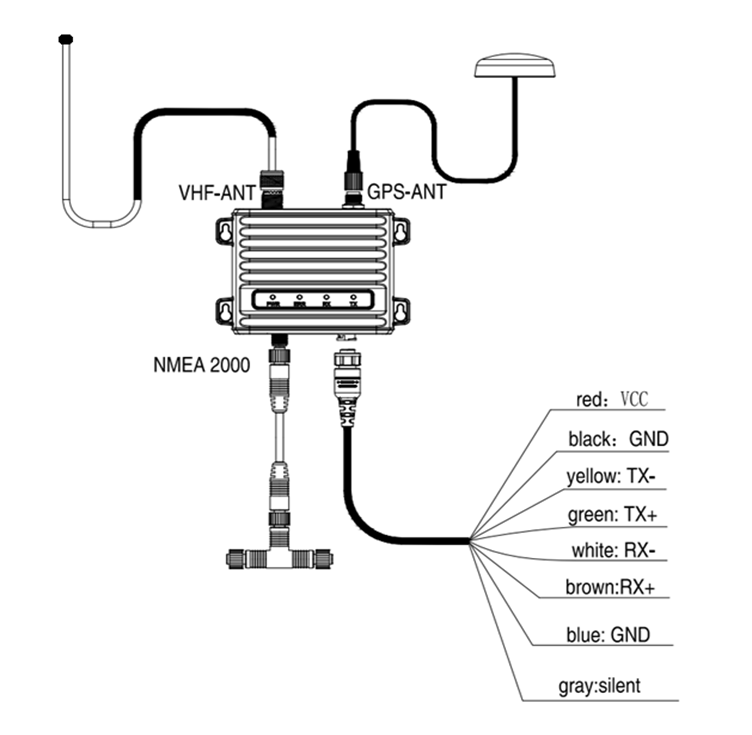

Figure 5 Peripheral Connection Diagram
Packaging and Model
Packaging Details
| Item | Description |
| Terminal Per Carton | |
| Carton Dimensions |
Model
| Model | Description |
| HS-MX6208GT | High Performance AIS Transceiver(Black Box) |
REQUEST A QUOTE
FAQs
Does this module include a built-in GPS receiver?
No, the HS-MX1203GT module itself does not have a built-in GPS. It requires an external active GPS/BeiDou antenna connected via its MCX-female connector to obtain its own position, which is essential for transmitting AIS messages.
What is the default configuration, and how do I program it for my vessel?
The module ships with generic factory settings. You must configure it with your vessel's specific MMSI number, name, and call sign using our provided AIS CONFIGURATION PC software and a TTL-to-USB adapter cable. Once configured, these details are stored in the module.
Can I temporarily turn off the AIS transmission (Silent Mode)?
Yes. The module features a SILENT pin. By pulling this pin low (to GND), you can disable AIS transmission for privacy or in security-sensitive areas while continuing to receive AIS data from other vessels.
What kind of antenna should I use with this module?
You need two separate VHF antennas:
A dedicated GPS/GLONASS/BeiDou active antenna for the GPS port.
Using high-quality, properly installed antennas is critical for optimal performance.
A dedicated AIS VHF antenna for the VHF port.
I'm designing a new device. Is technical documentation available?
Yes. We provide comprehensive documentation for integrators, including:
Schematic for Typical Application Circuits
Please contact our technical support team to access these resources.
Datasheet & Pinout Definitions
NMEA Protocol Guide
Configuration Command Manual
What is the Minimum Order Quantity (MOQ) for this module?
The MOQ for standard models like the HS-MX1203GT is typically 10 units. We also support customizations for larger volume orders. Contact our sales team for an exact quote.
Do you offer sample orders for testing and evaluation?
Yes, we encourage and support product evaluation. Sample orders are available. Please get in touch with us to arrange a sample and discuss your testing requirements.
Still have questions? Contact our technical sales team for expert advice.
