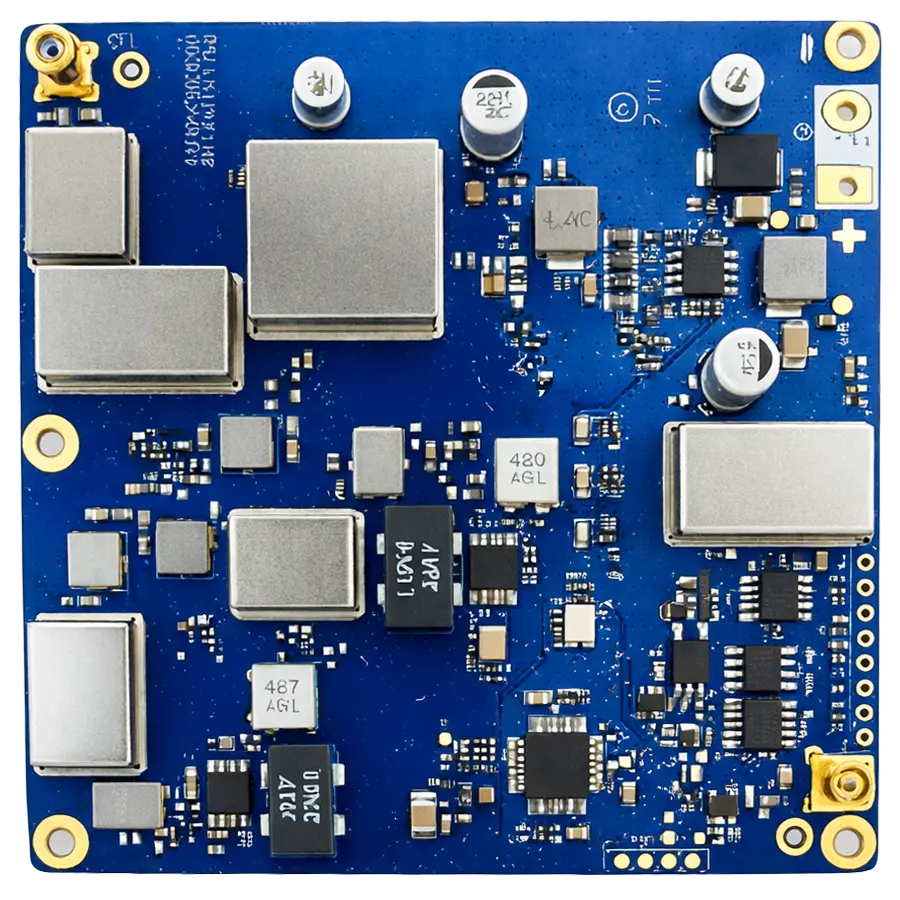

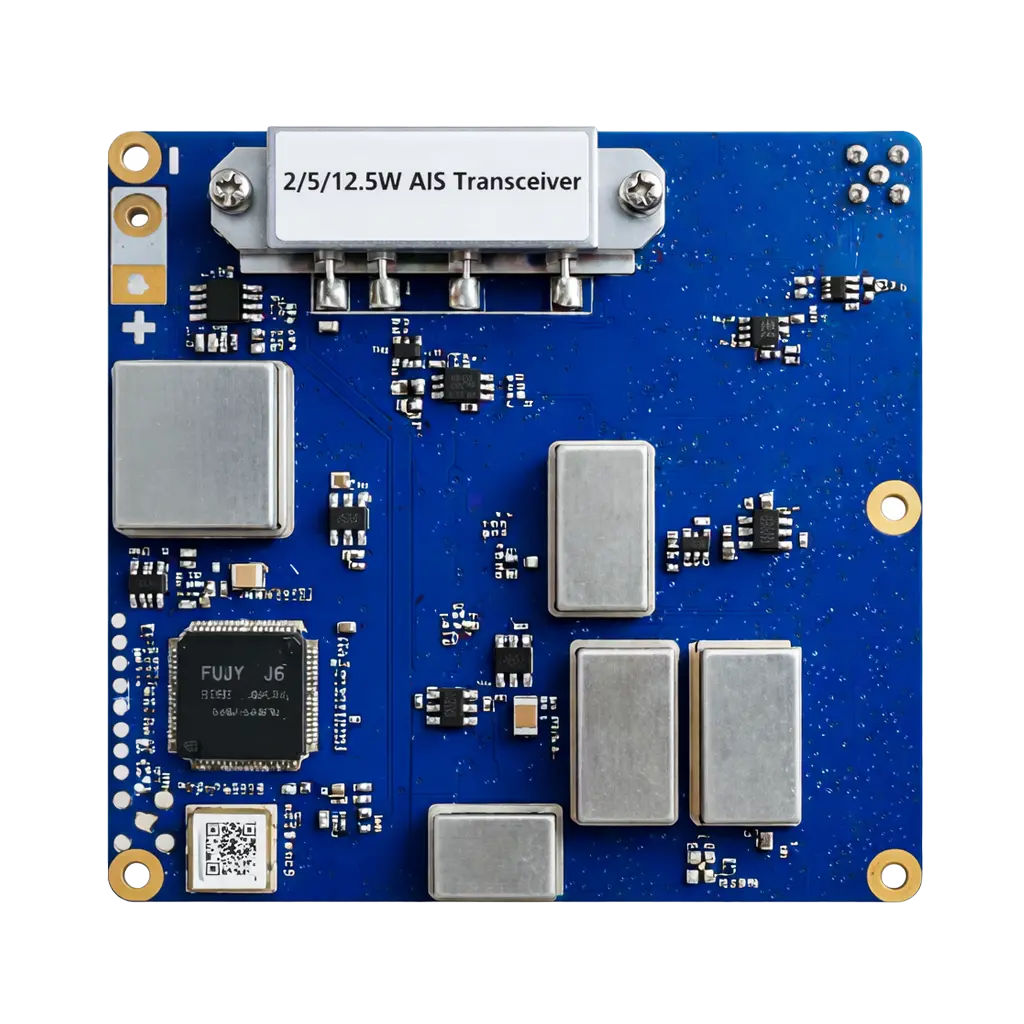

The HS‑MX1205GT is a next‑generation multi‑mode AIS (Automatic Identification System) Class A transceiver module designed for modern maritime communication, vessel tracking, and coastal monitoring systems. It integrates 12.5W SOTDMA Class A technology, offering exceptional RF performance, high reliability, and ultra‑compact size for shipborne, airborne, and unmanned platforms.
With excellent receiver sensitivity down to -119dBm @ 20% PER, the HS‑MX1205GT ensures stable AIS message reception even in congested or long‑range maritime environments. It supports Class A, AtoN, Virtual AtoN, USV, UAV, and AIS base‑station applications, making it a versatile solution for next‑generation maritime domain awareness systems.
The module integrates a full‑function AIS transceiver, built‑in 50‑channel GPS receiver, dual AIS receivers, and a 1‑channel transmitter. It complies with IEC 60945, IEC 61993‑2, IEC 62320‑2, IEC 61108‑1, and ITU‑R M.1371‑5 standards.
🟦 Key Features
Multi‑mode AIS Class A / AtoN / Virtual AtoN / Base‑Station / USV / UAV
The HS‑MX1205GT delivers high‑power AIS transmission, industry‑leading sensitivity, and multi‑mode flexibility, making it ideal for next‑generation maritime communication, vessel tracking, and unmanned system integration.
🟦 Why Choose HaisiTek
Advanced AIS communication technology
High‑reliability RF engineering
Full compliance with international maritime standards
Compact, rugged, and integration‑friendly design
Strong technical support and customization capability
No, the HS-MX1203GT module itself does not have a built-in GPS. It requires an external active GPS/BeiDou antenna connected via its MCX-female connector to obtain its own position, which is essential for transmitting AIS messages.
What is the default configuration, and how do I program it for my vessel?
The module ships with generic factory settings. You must configure it with your vessel's specific MMSI number, name, and call sign using our provided AIS CONFIGURATION PC software and a TTL-to-USB adapter cable. Once configured, these details are stored in the module.
Can I temporarily turn off the AIS transmission (Silent Mode)?
Yes. The module features a SILENT pin. By pulling this pin low (to GND), you can disable AIS transmission for privacy or in security-sensitive areas while continuing to receive AIS data from other vessels.
What kind of antenna should I use with this module?
You need two separate VHF antennas:
A dedicated GPS/GLONASS/BeiDou active antenna for the GPS port. Using high-quality, properly installed antennas is critical for optimal performance.
A dedicated AIS VHF antenna for the VHF port.
I'm designing a new device. Is technical documentation available?
Yes. We provide comprehensive documentation for integrators, including:
Schematic for Typical Application Circuits Please contact our technical support team to access these resources.
Datasheet & Pinout Definitions
NMEA Protocol Guide
Configuration Command Manual
What is the Minimum Order Quantity (MOQ) for this module?
The MOQ for standard models like the HS-MX1203GT is typically 10 units. We also support customizations for larger volume orders. Contact our sales team for an exact quote.
Do you offer sample orders for testing and evaluation?
Yes, we encourage and support product evaluation. Sample orders are available. Please get in touch with us to arrange a sample and discuss your testing requirements.
Still have questions? Contact our technical sales team for expert advice.
