HS-MX1206GT Embedded Dual-Channel AIS Receiver Module | Ultra-Compact Design
PRODUCT PARAMETERS
Description
AIS receiver module
The HS-MX1206GT is an ultra-compact, embedded dual-channel AIS receiver module. Measuring just 60x52x10mm and featuring a standard FPC interface, it provides robust and reliable AIS reception capabilities for a wide range of marine navigation, communication, and monitoring systems, enabling seamless integration into space-constrained designs.

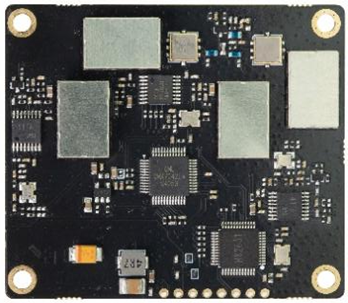

Figure 1 Physical Diagram

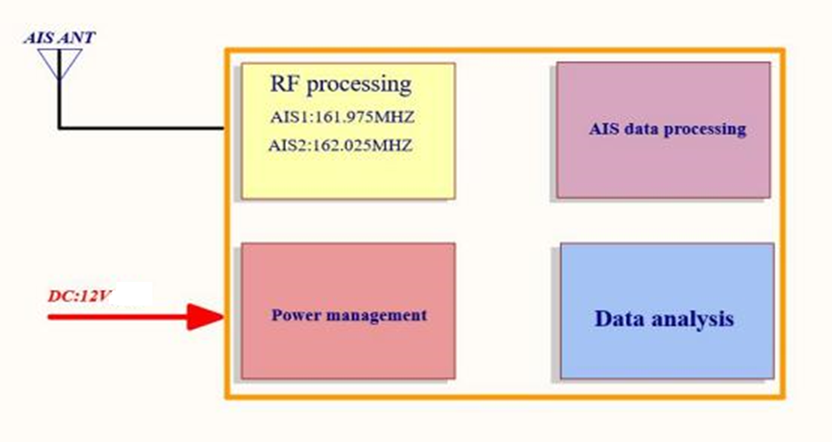

Functional Block Diagram
Figure 2 Module Internal Block Diagram
Typical Applications
The HS-MX1206GT can be widely applied in multi-mode marine radios, standalone marine AIS receivers, vessel status tracking and monitoring systems, maritime IoT terminals, and various products or equipment requiring AIS reception and parsing capabilities.

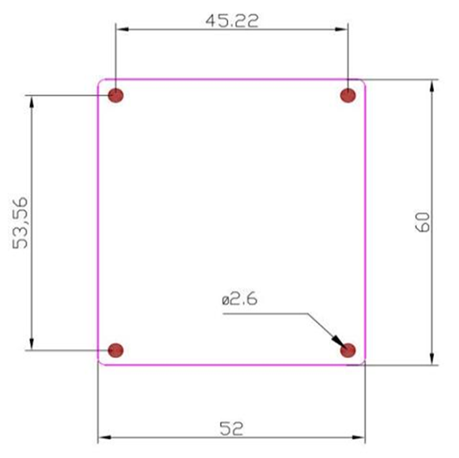

Dimensions (unit: mm)
Figure 3 Module Dimensions: 60mm x 52mm x 10mm
FPC Cable Connector Definition
| Pin | Definition | Description |
| 1 | VCC | Power supply input(Typical 12VDC) |
| 2 | VCC | Power supply input(Typical 12VDC) |
| 3 | NC | Floating |
| 4 | GND | Ground |
| 5 | GND | Ground |
| 6 | TXD | Serial data output,3.3V TTL, baud rate 38400bps |
| 7 | RXD | Serial data input,3.3V TTL, baud rate 38400bps |
| 8 | NC | Floating |

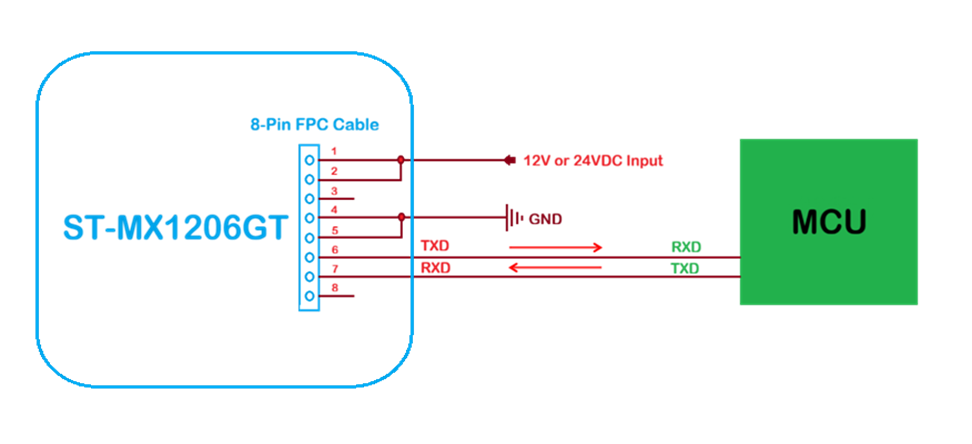

Typical Application Circuits
Usage Notes
- The screws securing the HS-MX1206GT module have a diameter of 2.6mm.
- The HS-MX1206GT accepts 12V or 24V DC power input. After power-up,
- allow a one-second initialization period before the module begins normal operation.
- The UART1 provides standard 3.3V TTL serial data output with 38400bps
- baud rate.
- The UART2 is reserved and does not output data.
- The HS-MX1206GT operates normally without any configuration. It outputs raw AIS message data requiring system parsing.
- The HS-MX1206GT does not include positioning functionality. For positioning
- capabilities, a separate positioning module and algorithm must be added.
- The power supply noise must be less than 30mV. Excessive power supply noise will degrade the module’s reception performance.
Packaging and model
| Item | Description |
| Modules Per Carton | |
| Carton Dimensions |
| Model | Description |
| HS-MX1206GT | Embedded Dual-Channel AIS Receiver Module |
REQUEST A QUOTE
FAQs
Does this module include a built-in GPS receiver?
No, the HS-MX1203GT module itself does not have a built-in GPS. It requires an external active GPS/BeiDou antenna connected via its MCX-female connector to obtain its own position, which is essential for transmitting AIS messages.
What is the default configuration, and how do I program it for my vessel?
The module ships with generic factory settings. You must configure it with your vessel's specific MMSI number, name, and call sign using our provided AIS CONFIGURATION PC software and a TTL-to-USB adapter cable. Once configured, these details are stored in the module.
Can I temporarily turn off the AIS transmission (Silent Mode)?
Yes. The module features a SILENT pin. By pulling this pin low (to GND), you can disable AIS transmission for privacy or in security-sensitive areas while continuing to receive AIS data from other vessels.
What kind of antenna should I use with this module?
You need two separate VHF antennas:
A dedicated GPS/GLONASS/BeiDou active antenna for the GPS port.
Using high-quality, properly installed antennas is critical for optimal performance.
A dedicated AIS VHF antenna for the VHF port.
I'm designing a new device. Is technical documentation available?
Yes. We provide comprehensive documentation for integrators, including:
Schematic for Typical Application Circuits
Please contact our technical support team to access these resources.
Datasheet & Pinout Definitions
NMEA Protocol Guide
Configuration Command Manual
What is the Minimum Order Quantity (MOQ) for this module?
The MOQ for standard models like the HS-MX1203GT is typically 10 units. We also support customizations for larger volume orders. Contact our sales team for an exact quote.
Do you offer sample orders for testing and evaluation?
Yes, we encourage and support product evaluation. Sample orders are available. Please get in touch with us to arrange a sample and discuss your testing requirements.
Still have questions? Contact our technical sales team for expert advice.
